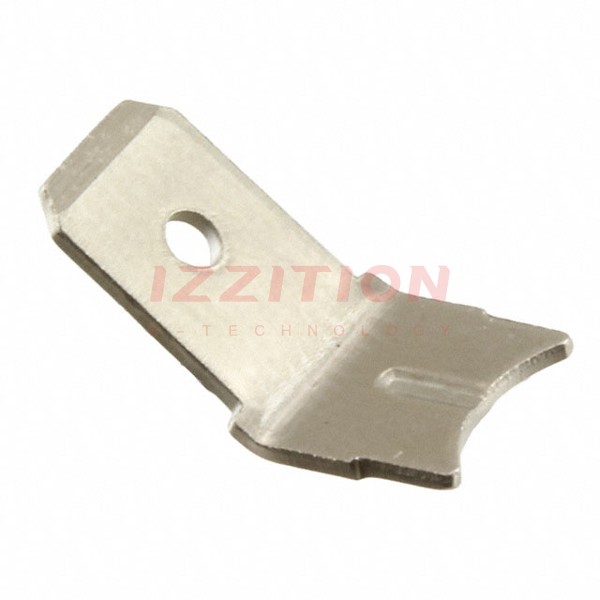

| Part Number | 61960-1 | 61969-1 | 61968-1 | 61060-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Angled - 45° | Standard | Standard | Standard |
| Gender | Male | Female | Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | - | 0.250" (6.35mm) | 0.280" (7.11mm) | 0.250" (6.35mm) |
| Length - Overall | - | 0.475" (12.07mm) | 0.485" (12.32mm) | 0.734" (18.64mm) |
| Termination | Screw, Rivet, Stud | Crimp | Solder | Crimp |
| Wire Gauge | - | 16-20 AWG | - | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Mating End Insulated |
| Mounting Type | Board, Chassis | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | Transparent |
| Contact Material | Steel | Brass | Brass | Brass |
| Contact Finish | Nickel | Tin | Tin | Tin |
