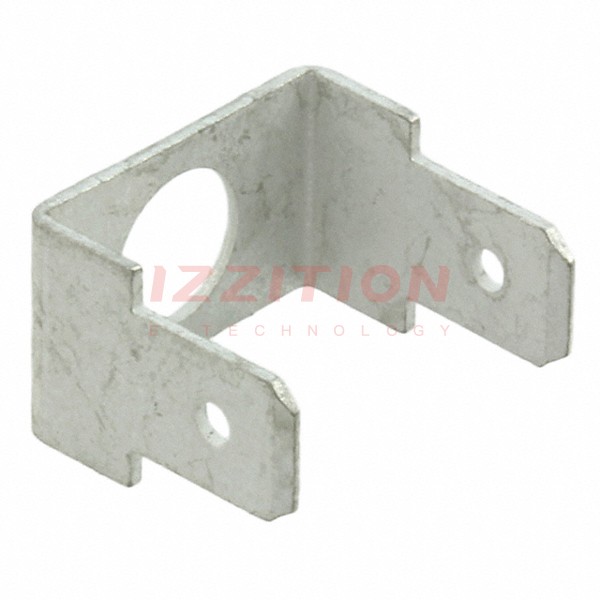

| Part Number | 61914-1 | 61919-1 | 61944-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 90° | Standard | Stacked |
| Gender | Male | Female | Female and Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.250" (6.35mm) | 0.305" (7.75mm) |
| Length - Overall | - | 0.585" (14.86mm) | 0.810" (20.57mm) |
| Termination | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | - | 16-20 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | 2 Tabs | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | - | - |
