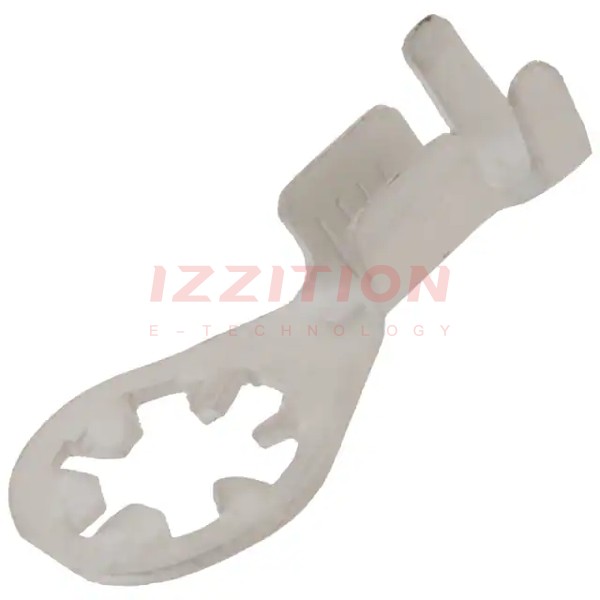

| Part Number | 61794-1 | 61795-1 | 61794-4 | 61764-1 | 61793-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Oval | Circular | Oval | Circular |
| Stud/Tab Size | 8 Stud | 10 Stud | 8 Stud | 6 Stud | 6 Stud |
| Thickness | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) |
| Width - Outer Edges | 0.370" (9.40mm) | 0.445" (11.30mm) | 0.370" (9.40mm) | 0.230" (5.84mm) | 0.370" (9.40mm) |
| Length - Overall | 0.772" (19.61mm) | 0.772" (19.61mm) | 0.772" (19.61mm) | 0.460" (11.68mm) | 0.772" (19.61mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 14-18 AWG | 16-20 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Inner Teeth, Serrated Termination | Inner Teeth, Serrated Termination | Inner Teeth, Serrated Termination | - | Inner Teeth, Serrated Termination |
| Color | - | - | - | - | - |
| Contact Material | Steel | Steel | Brass | Brass | Steel |
| Contact Finish | Tin | Tin | - | - | Tin |
