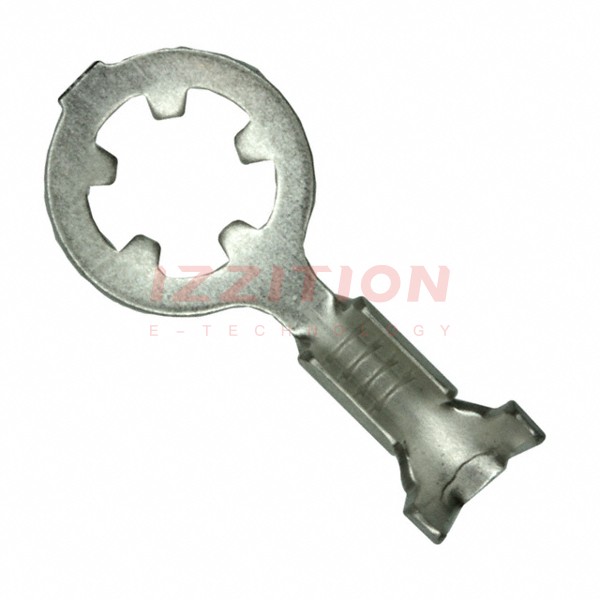

| Part Number | 61556-1 | 61546-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | - | 5/16 Stud |
| Thickness | 0.025" (0.64mm) | 0.050" (1.27mm) |
| Width - Outer Edges | 0.370" (9.40mm) | 0.550" (13.97mm) |
| Length - Overall | 0.772" (19.61mm) | 1.105" (28.07mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 6-10 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | Inner Teeth, Serrated Termination | - |
| Color | - | - |
| Contact Material | Steel | Brass |
| Contact Finish | Tin | Tin |
