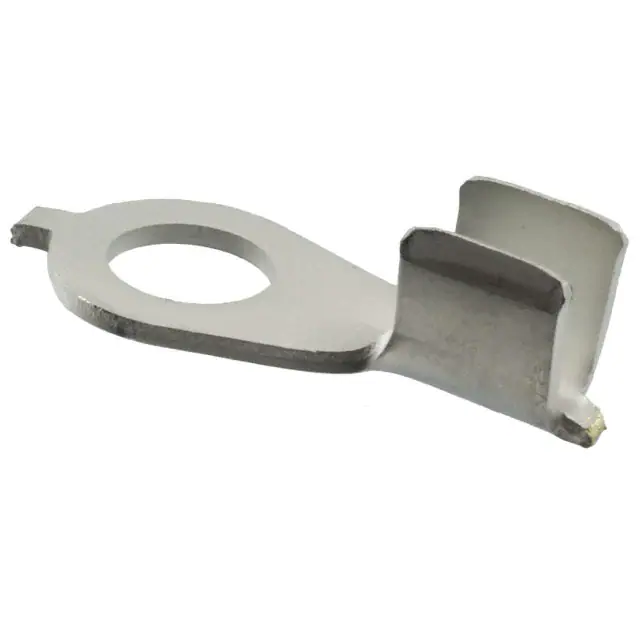

| Part Number | 61546-1 | 61556-1 | 60546-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Oval |
| Stud/Tab Size | 5/16 Stud | - | - |
| Thickness | 0.050" (1.27mm) | 0.025" (0.64mm) | - |
| Width - Outer Edges | 0.550" (13.97mm) | 0.370" (9.40mm) | 0.335" (8.51mm) |
| Length - Overall | 1.105" (28.07mm) | 0.772" (19.61mm) | 0.687" (17.45mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 6-10 AWG | 16-22 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | Inner Teeth, Serrated Termination | Extruded |
| Color | - | - | - |
| Contact Material | Brass | Steel | Brass |
| Contact Finish | Tin | Tin | - |
