Please send RFQ , we will respond immediately.

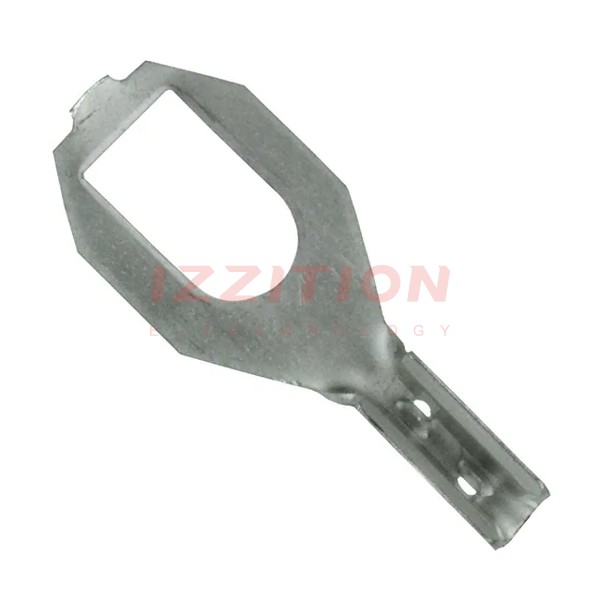

| Part Number | 61498-2 | 61498-3 | 61498-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Stud/Tab Size | 5 Stud | 5 Stud | 5 Stud |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.578" (14.69mm) | 0.578" (14.69mm) | 0.578" (14.69mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp, Piercing | Crimp, Piercing | Crimp, Piercing |
| Wire Gauge | 22-28 AWG | 22-28 AWG | 22-28 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - |
| Color | - | - | - |
| Contact Finish | Tin | Tin | - |
| Contact Material | Brass | Brass | Brass |
