Please send RFQ , we will respond immediately.

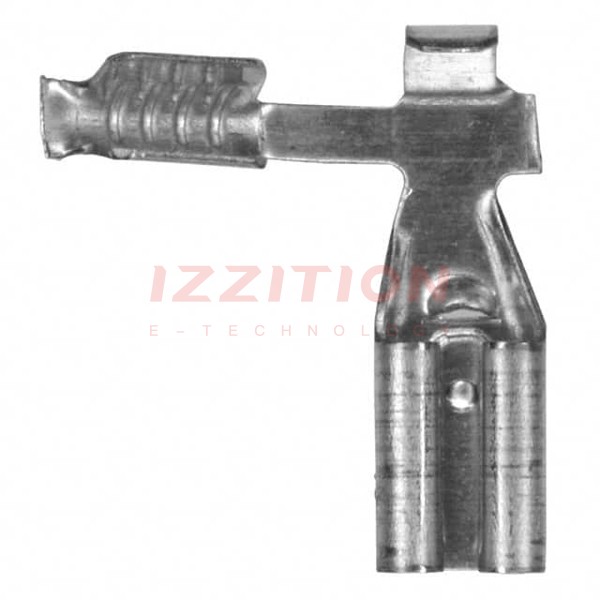

| Part Number | 61459-1 | 61499-1 | 61454-1 | 61457-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Angled - 45° | Standard | Standard |
| Gender | Female | Male | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.062" (1.57mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.016" (0.41mm) |
| Tab Length | - | - | 0.186" (4.72mm) | 0.250" (6.35mm) |
| Length - Overall | - | - | 0.462" (11.73mm) | 0.537" (13.64mm) |
| Termination | Crimp | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | - | 20-24 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
