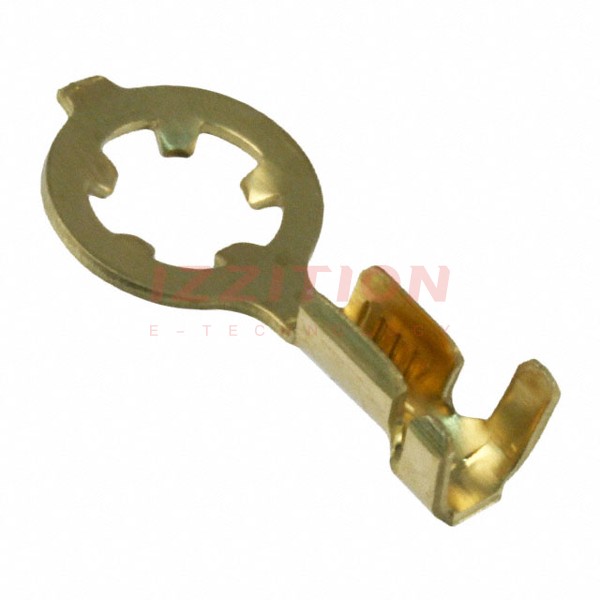

| Part Number | 61436-1 | 61436-2 | 61336-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Oval | Oval | Oval |
| Stud/Tab Size | - | - | 3/8 Stud |
| Thickness | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.370" (9.40mm) | 0.370" (9.40mm) | 0.687" (17.45mm) |
| Length - Overall | 0.772" (19.61mm) | 0.772" (19.61mm) | 1.245" (31.62mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Inner Teeth, Serrated Termination | Inner Teeth, Serrated Termination | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin |
