Please send RFQ , we will respond immediately.

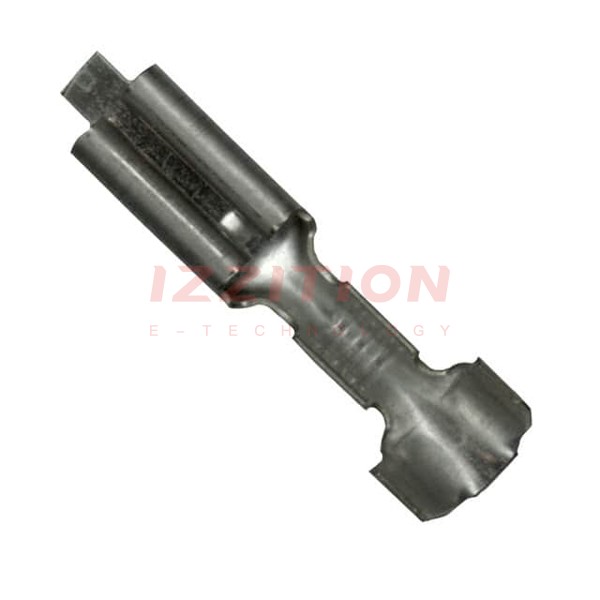

| Part Number | 61158-1 | 61758-1 | 61188-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag |
| Gender | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.025" (0.64mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | - |
| Length - Overall | 0.635" (16.13mm) | 0.585" (14.86mm) | - |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 16-20 AWG | 12-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | - | Tin |
