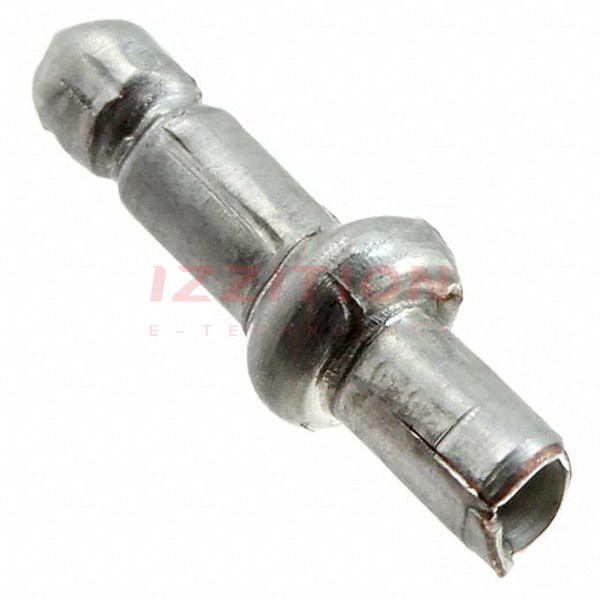

| Part Number | 61097-1 | 61067-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Terminal Type | Single Post | Single Post |
| Terminal Style | Flanged | Flanged |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | - | - |
| Length - Above Flange | 0.160" (4.06mm) | 0.160" (4.06mm) |
| Length - Below Flange | 0.100" (2.54mm) | 0.150" (3.81mm) |
| Length - Overall | 0.325" (8.26mm) | 0.380" (9.65mm) |
| Flange Diameter | 0.090" (2.29mm) | 0.085" (2.16mm) |
| Mounting Hole Diameter | 0.067" ~ 0.073" (1.70mm ~ 1.85mm) | 0.046" ~ 0.050" (1.17mm ~ 1.27mm) |
| Mounting Type | Through Hole | Through Hole |
| Termination | Clinch Fit | Press-Fit |
| Insulation | Non-Insulated | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) | 0.062" ~ 0.094" (1.57mm ~ 2.39mm) |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Gold |
| Contact Finish Thickness | - | 30.0µin (0.76µm) |
