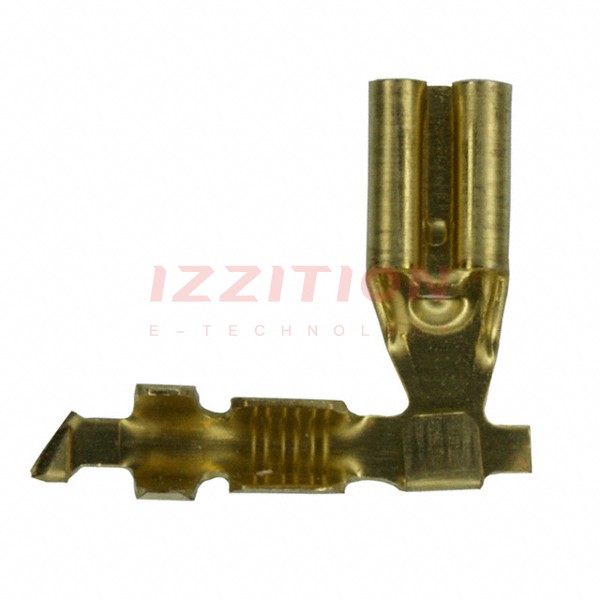

| Part Number | 61070-2 | 61060-2 | 61070-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Standard | Angled - 90°, Flag |
| Gender | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | - | 0.250" (6.35mm) | - |
| Length - Overall | - | 0.734" (18.64mm) | - |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Mating End Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - |
| Color | - | Transparent | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin |
