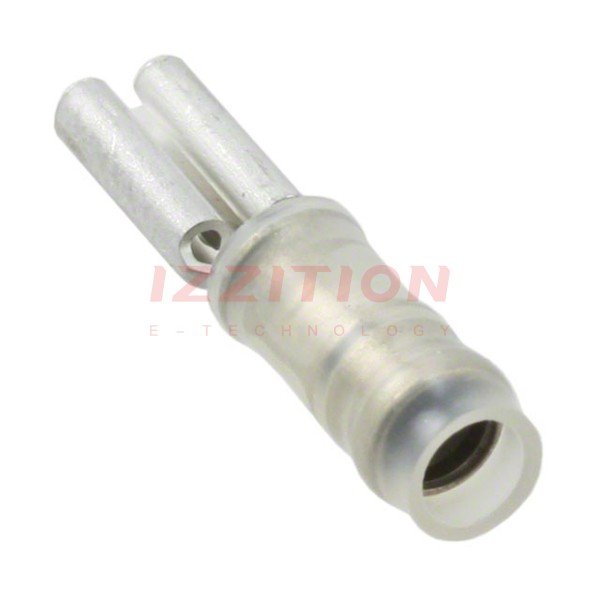

| Part Number | 61048-2 | 62048-2 | 61048-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.016" (0.41mm) |
| Tab Length | 0.250" (6.35mm) | 0.305" (7.75mm) | 0.250" (6.35mm) |
| Length - Overall | 0.734" (18.64mm) | - | 0.734" (18.64mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 14-18 AWG | 18-22 AWG |
| Insulation | Non-Mating End Insulated | Non-Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | Transparent | - | Transparent |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin |
