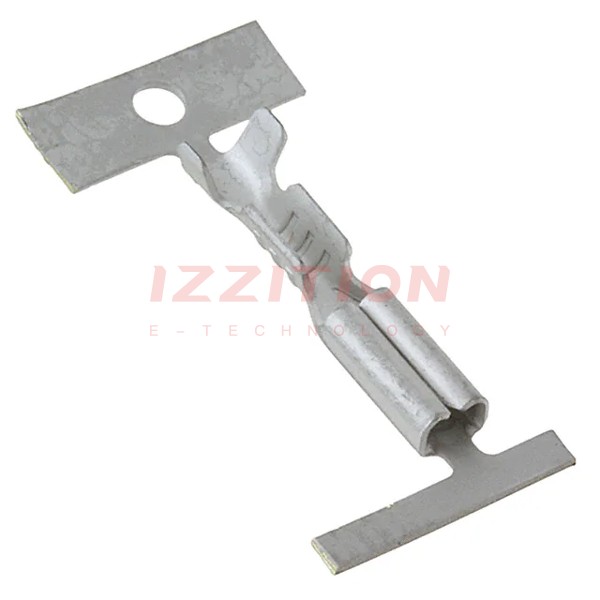

| Part Number | 60900-2 | 60904-2 | 60900-4 | 60900-3 | 60900-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.062" (1.57mm) | 0.205" (5.21mm) | 0.062" (1.57mm) | 0.062" (1.57mm) | 0.062" (1.57mm) |
| Tab Thickness | 0.031" (0.79mm) | 0.032" (0.81mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Tab Length | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Length - Overall | 0.462" (11.73mm) | 0.616" (15.65mm) | 0.462" (11.73mm) | 0.462" (11.73mm) | 0.462" (11.73mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 22 AWG, 24 AWG | 18-22 AWG | 22 AWG, 24 AWG | 22 AWG, 24 AWG | 22 AWG, 24 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Gold | Tin | Tin | - | Tin |
