Please send RFQ , we will respond immediately.

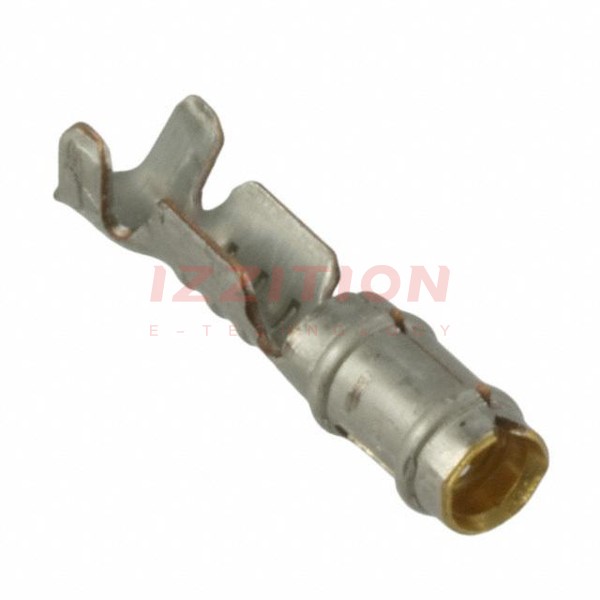

| Part Number | 60888-2 | 60888-3 | 60885-2 | 60888-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Female, Receptacle (Socket) | Female, Receptacle (Socket) | Female, Receptacle (Socket) | Female, Receptacle (Socket) |
| Diameter - Barrel | 0.058" (1.47mm) | 0.058" (1.47mm) | 0.055" (1.40mm) | 0.058" (1.47mm) |
| Wire Gauge | 22-26 AWG | 22-26 AWG | 20-24 AWG | 22-26 AWG |
| Length - Overall | 0.380" (9.65mm) | 0.380" (9.65mm) | 0.450" (11.43mm) | 0.380" (9.65mm) |
| Length - Barrel | 0.155" (3.94mm) | 0.155" (3.94mm) | 0.220" (5.59mm) | 0.155" (3.94mm) |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Features | - | - | - | - |
| Contact Material | Phosphor Bronze | Beryllium Copper | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Tin | Tin | Tin |
| Color | - | - | - | - |
