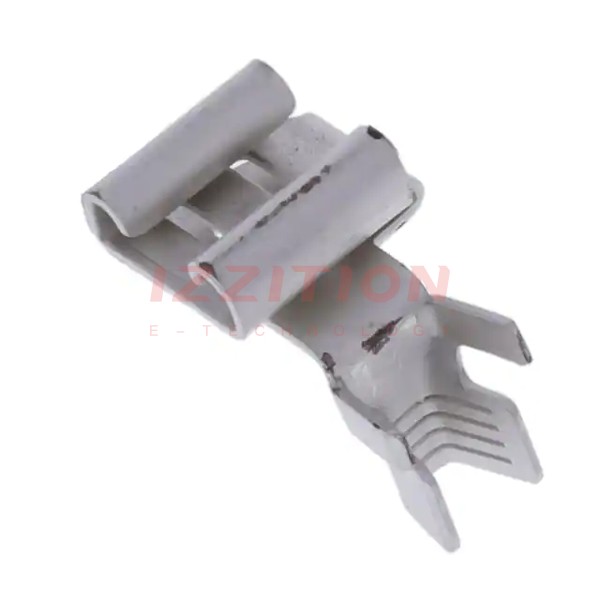

| Part Number | 60873-1 | 60573-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Angled - 90°, Flag | Standard |
| Gender | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | - | 0.250" (6.35mm) |
| Length - Overall | - | 0.590" (14.99mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 12-16 AWG | 20-24 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin |
