Please send RFQ , we will respond immediately.

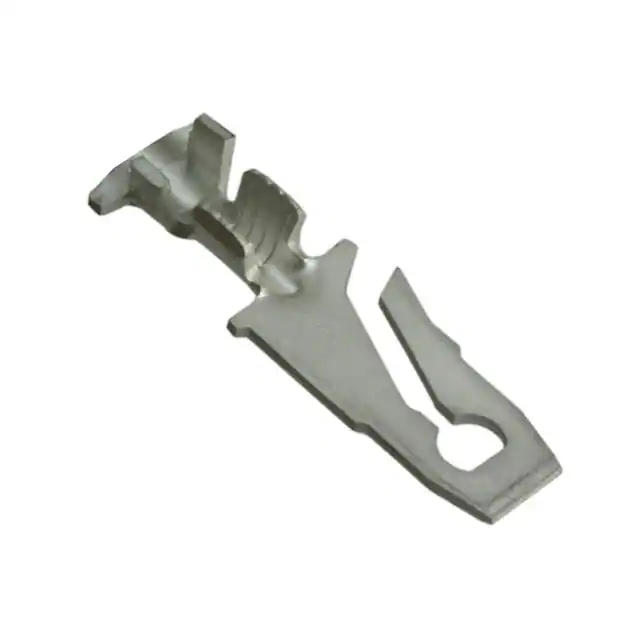

| Part Number | 60794-2 | 60894-2 | 60294-2 | 60764-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Fishhook | Standard | Standard | Angled - 90°, Flag |
| Gender | Male | Female | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.250" (6.35mm) | 0.620" (15.75mm) | - |
| Length - Overall | - | 0.734" (18.64mm) | 1.107" (28.12mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 18-22 AWG | 18-22 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Mating End Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - |
| Color | - | Transparent | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
