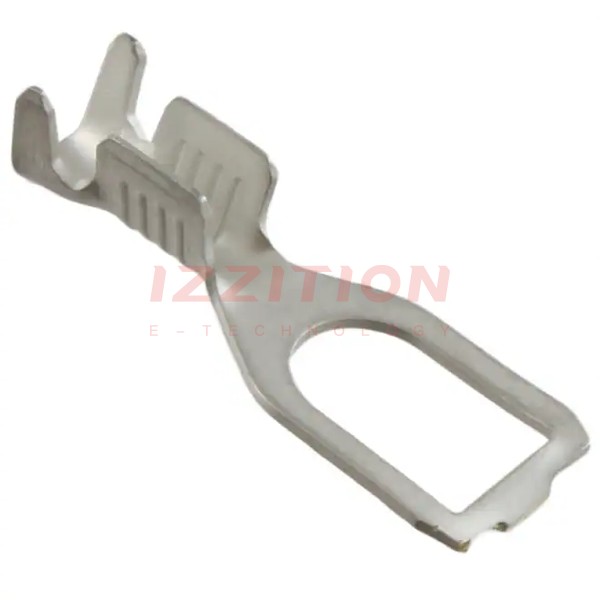

| Part Number | 60775-2 | 60773-2 | 60774-2 | 60775-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Stud/Tab Size | 10 Stud | 6 Stud | 8 Stud | 10 Stud |
| Width - Outer Edges | 0.295" (7.49mm) | 0.295" (7.49mm) | 0.295" (7.49mm) | 0.295" (7.49mm) |
| Length - Overall | 0.798" (20.27mm) | 0.798" (20.27mm) | 0.798" (20.27mm) | 0.798" (20.27mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 14-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Finish | Tin | Tin | Tin | - |
| Contact Material | Brass | Brass | Brass | Brass |
