Please send RFQ , we will respond immediately.

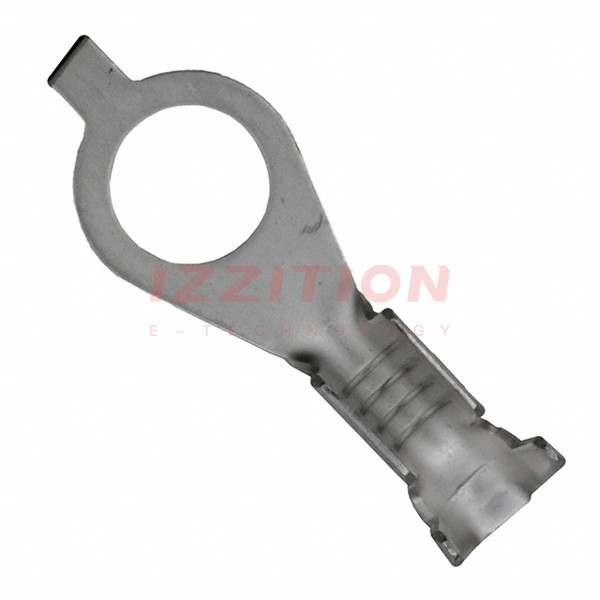

| Part Number | 60772-2 | 60772-3 | 60752-2 | 60770-2 | 60771-2 | 60772-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 10 Stud | 8 Stud | 6 Stud | 8 Stud | 10 Stud |
| Thickness | 0.018" (0.46mm) | 0.018" (0.46mm) | 0.025" (0.64mm) | 0.018" (0.46mm) | 0.018" (0.46mm) | 0.018" (0.46mm) |
| Width - Outer Edges | 0.295" (7.49mm) | 0.295" (7.49mm) | 0.342" (8.69mm) | 0.295" (7.49mm) | 0.295" (7.49mm) | 0.295" (7.49mm) |
| Length - Overall | 0.734" (18.64mm) | 0.734" (18.64mm) | 0.827" (21.00mm) | 0.734" (18.64mm) | 0.734" (18.64mm) | 0.734" (18.64mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 15 AWG or 17 AWG | 14-18 AWG | 14-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | - |
