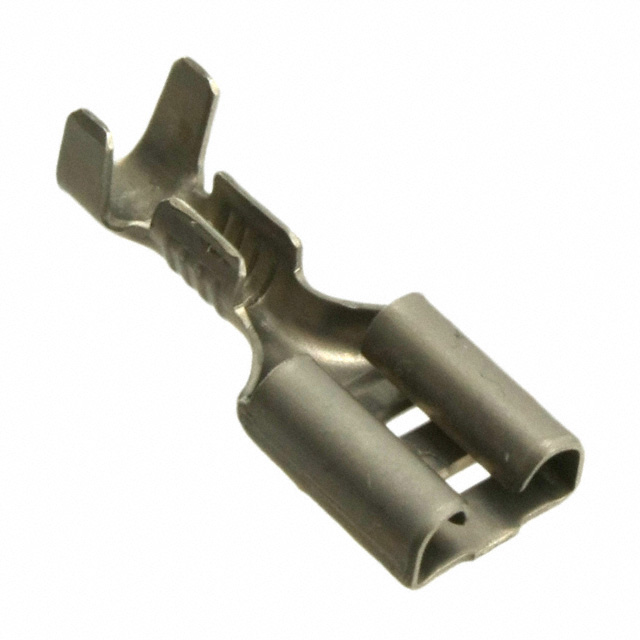

| Part Number | 60705-1 | 60755-1 | 60605-1 | 60701-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.220" (5.59mm) | 0.200" (5.08mm) | 0.620" (15.75mm) |
| Length - Overall | 0.795" (20.19mm) | - | - | 1.107" (28.12mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 16-20 AWG | 18-22 AWG | 10-14 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Brass |
| Contact Finish | Nickel | - | Tin | Tin |
