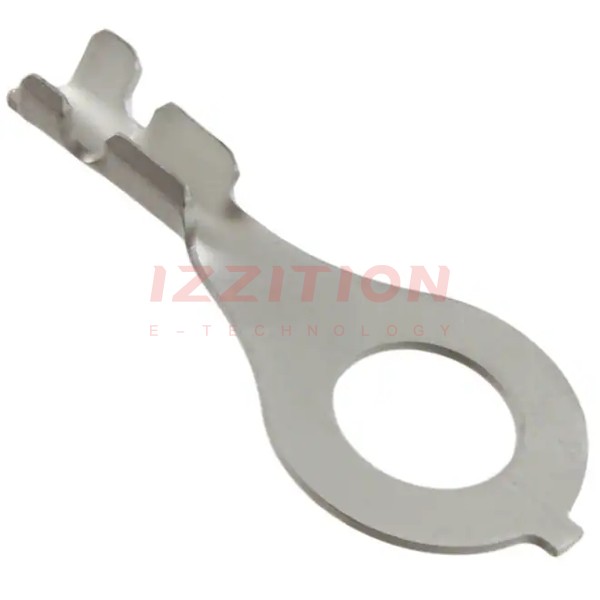

| Part Number | 60700-2 | 60700-3 | 60770-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Oval | Oval | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud | 6 Stud |
| Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.018" (0.46mm) |
| Width - Outer Edges | 0.468" (11.89mm) | 0.468" (11.89mm) | 0.295" (7.49mm) |
| Length - Overall | 0.982" (24.94mm) | 0.982" (24.94mm) | 0.734" (18.64mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 16-20 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | Serrated Termination |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin |
