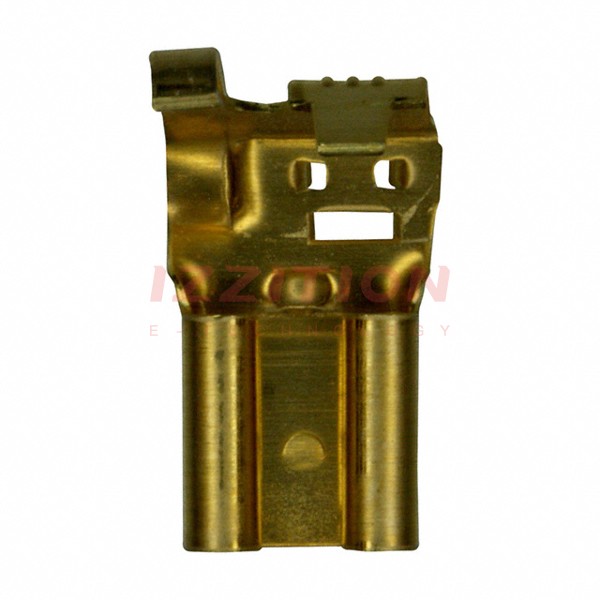

| Part Number | 60641-1 | 60601-1 | 60621-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Standard | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | - | 0.475" (12.07mm) | 0.585" (14.86mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 12-18 AWG | 18-20 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Steel |
| Contact Finish | - | Tin | Nickel |
