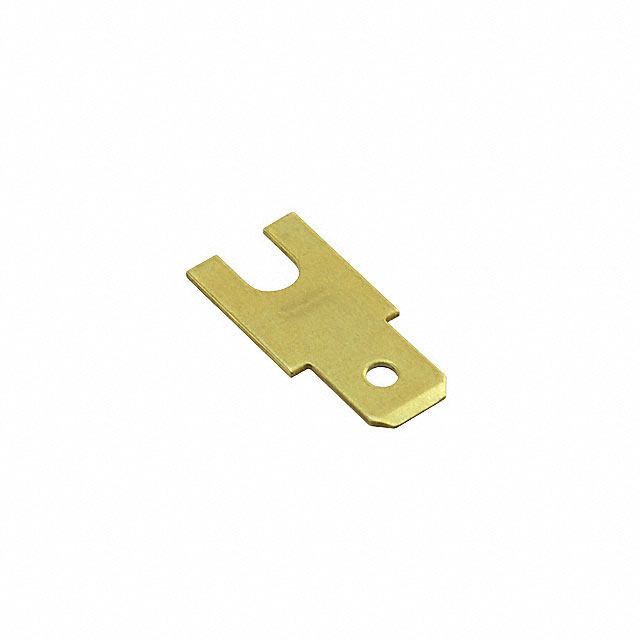

| Part Number | 60613-1 | 60713-1 | 60413-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Male | Female | Female |
| Tab Width | 0.205" (5.21mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.245" (6.22mm) | 0.305" (7.75mm) | 0.315" (8.00mm) |
| Length - Overall | 0.625" (15.88mm) | 0.753" (19.13mm) | 0.760" (19.30mm) |
| Termination | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | - | 14-18 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | - | - | Tin |
