Please send RFQ , we will respond immediately.

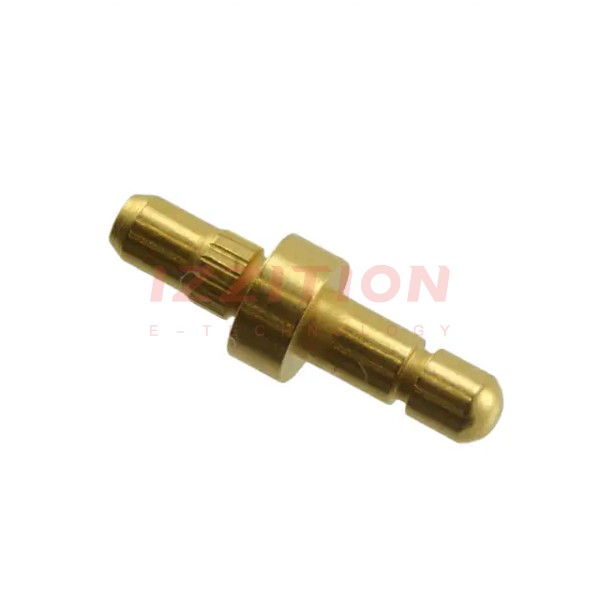

| Part Number | 60599-3 | 60599-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Terminal Type | Single Post | Single Post |
| Terminal Style | Flanged, Pin Retention | Flanged, Pin Retention |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | - | - |
| Length - Above Flange | 0.165" (4.18mm) | 0.165" (4.18mm) |
| Length - Below Flange | 0.143" (3.63mm) | 0.143" (3.63mm) |
| Length - Overall | 0.352" (8.94mm) | 0.352" (8.94mm) |
| Flange Diameter | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Mounting Hole Diameter | 0.059" ~ 0.062" (1.50mm ~ 1.57mm) | 0.059" ~ 0.062" (1.50mm ~ 1.57mm) |
| Mounting Type | Through Hole | Through Hole |
| Termination | Press-Fit, Knurled | Press-Fit, Knurled |
| Insulation | Non-Insulated | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) | 0.063" (1.60mm) |
| Contact Material | Brass | Brass |
| Contact Finish | Gold | Tin-Lead |
| Contact Finish Thickness | 30.0µin (0.76µm) | 15.0µin (0.38µm) |
