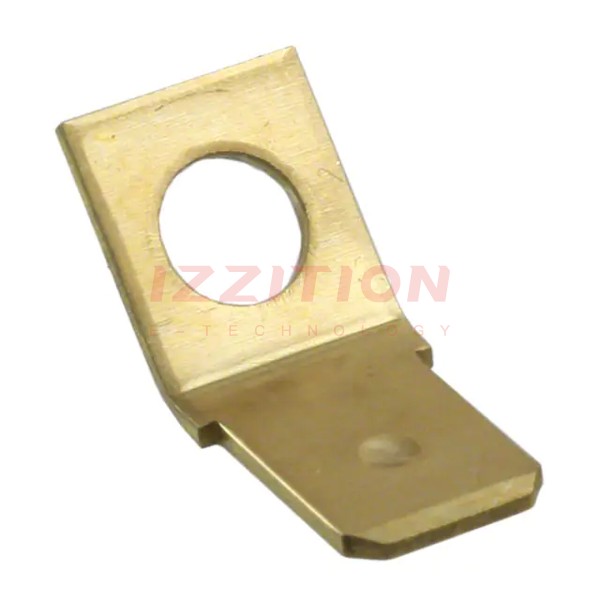

| Part Number | 60465-1 | 60465-2 | 60415-1 | 60435-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Angled - 45° | Angled - 45° | Standard | Standard |
| Gender | Male | Male | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.012" (0.30mm) | 0.020" (0.51mm) |
| Tab Length | - | - | 0.250" (6.35mm) | - |
| Length - Overall | - | - | 0.635" (16.13mm) | 0.750" (19.05mm) |
| Termination | Screw, Rivet, Stud | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | - | - | 18-22 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | Tin |
