Please send RFQ , we will respond immediately.

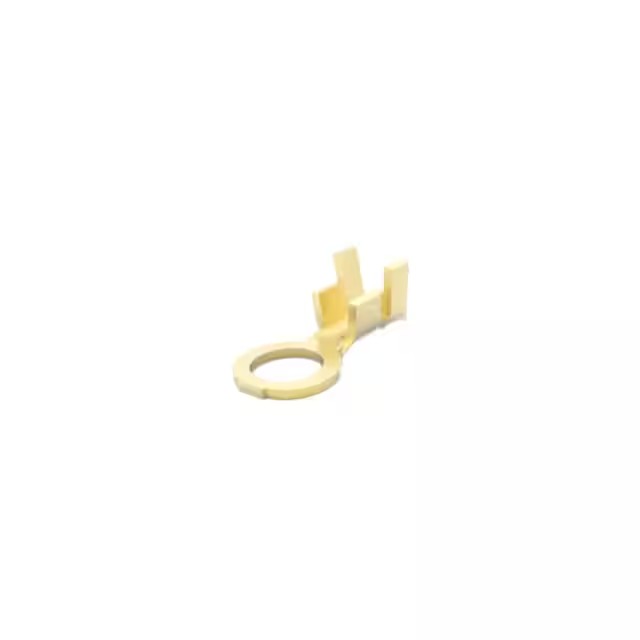

| Part Number | 60434-1 | 60634-1 | 60435-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Male | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.485" (12.32mm) | 0.305" (7.75mm) | - |
| Length - Overall | 0.955" (24.26mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 14-18 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin |
