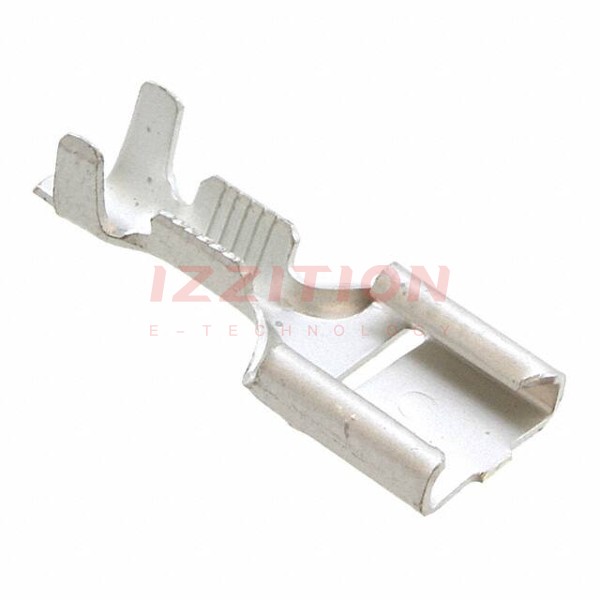

| Part Number | 60384-2 | 60385-2 | 60284-2 | 60384-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.205" (5.21mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.280" (7.11mm) | 0.280" (7.11mm) | 0.250" (6.35mm) | 0.280" (7.11mm) |
| Length - Overall | 0.690" (17.53mm) | 0.690" (17.53mm) | 0.545" (13.84mm) | 0.690" (17.53mm) |
| Termination | Crimp | Crimp | Solder | Crimp |
| Wire Gauge | 16-20 AWG | 14-18 AWG | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | - |
