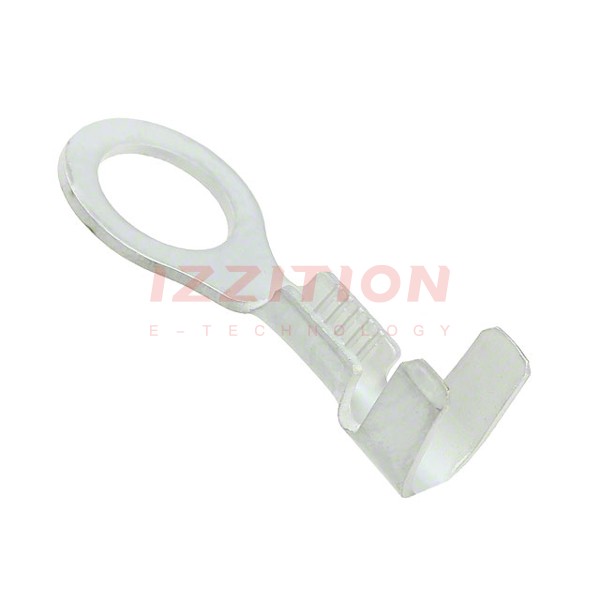

| Part Number | 60325-2 | 60320-2 | 60322-2 | 60323-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 8 Stud | 8 Stud | 8 Stud |
| Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Width - Outer Edges | 0.300" (7.62mm) | 0.342" (8.69mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Length - Overall | 0.695" (17.65mm) | 0.833" (21.16mm) | 0.695" (17.65mm) | 0.695" (17.65mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 19-23 AWG | 14-18 AWG | 16-20 AWG | 19-23 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
