Please send RFQ , we will respond immediately.

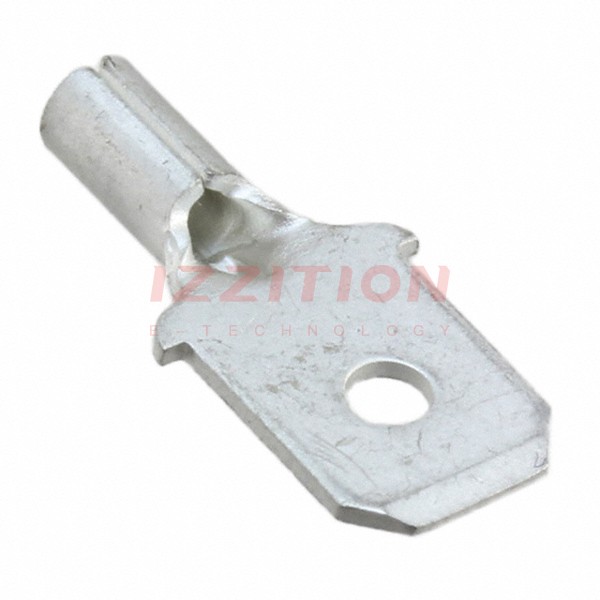

| Part Number | 60284-2 | 60384-2 | 60294-2 | 60214-2 | 60274-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Angled - 90°, Flag |
| Gender | Male | Female | Male | Female | Female |
| Tab Width | 0.205" (5.21mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.280" (7.11mm) | 0.620" (15.75mm) | 0.250" (6.35mm) | 0.305" (7.75mm) |
| Length - Overall | 0.545" (13.84mm) | 0.690" (17.53mm) | 1.107" (28.12mm) | 0.585" (14.86mm) | - |
| Termination | Solder | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | - | 16-20 AWG | 18-22 AWG | 16-20 AWG | 12-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
