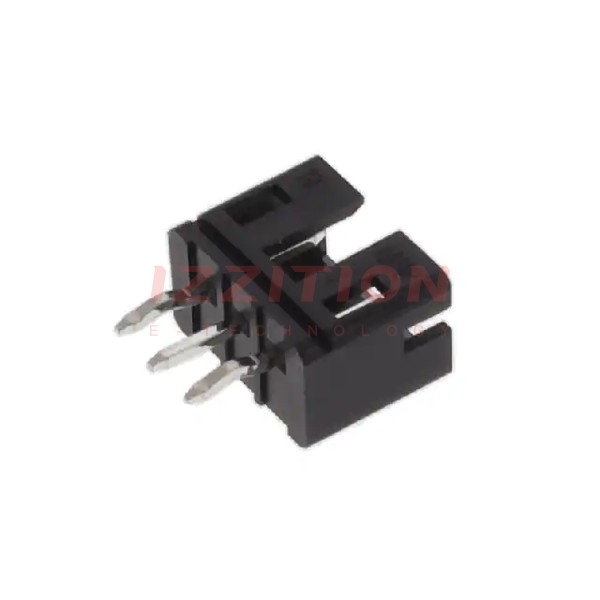

| Part Number | 6-440054-3 | 6-440054-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 3 | 2 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Press-Fit, Solder | Press-Fit, Solder |
| Fastening Type | - | - |
| Contact Length - Mating | 0.132" (3.35mm) | 0.132" (3.35mm) |
| Contact Length - Post | 0.134" (3.40mm) | 0.134" (3.40mm) |
| Overall Contact Length | 0.335" (8.51mm) | 0.335" (8.51mm) |
| Insulation Height | 0.238" (6.05mm) | 0.238" (6.05mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Features | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | 250V | 250V |
