Please send RFQ , we will respond immediately.

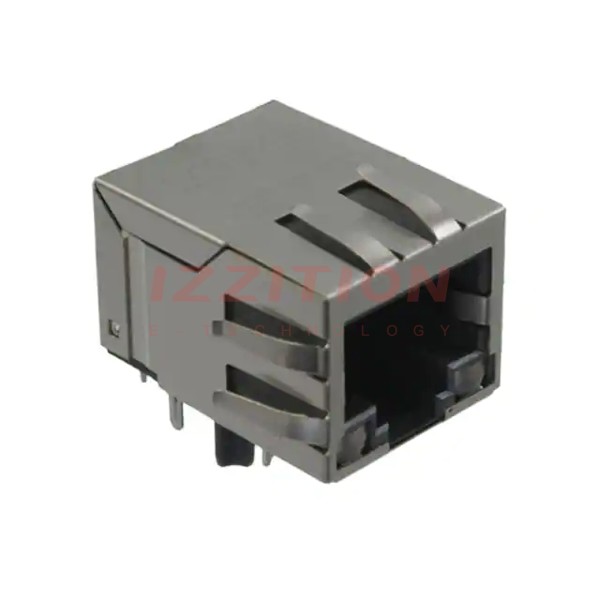

| Part Number | 6-2301994-2 | 5-2301994-2 | 6-2301994-0 | 6-2301994-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | RJ45 | RJ45 | RJ45 | RJ45 |
| Number of Ports | 1 | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 | 1 |
| Applications | 10/100/1000 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder | Solder |
| Height Above Board | 0.537" (13.65mm) | 0.544" (13.82mm) | 0.537" (13.65mm) | 0.445" (11.30mm) |
| LED Color | Green, Yellow - Green, Yellow | Green - Yellow | Green - Yellow | Green, Orange - Yellow |
| Number of Cores per Jack | 8 | 4 | 8 | 8 |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger |
| Features | Board Lock | Board Lock | Board Lock | Board Lock |
| Tab Direction | Down | Up | Down | Up |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold | Gold |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
