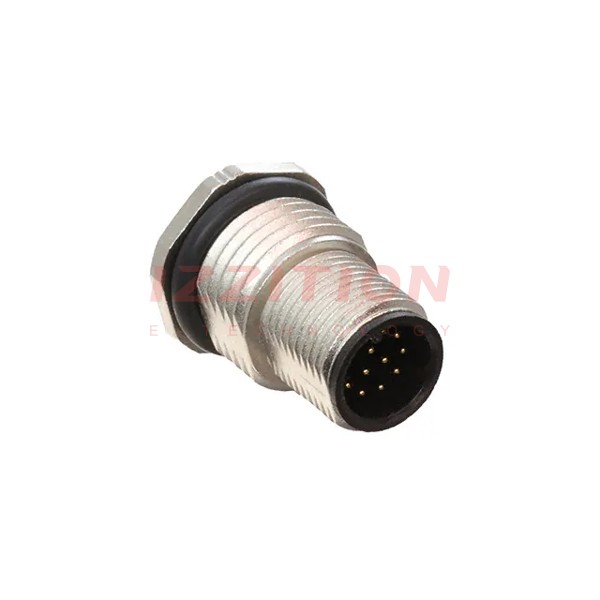

| Part Number | 6-2271140-2 | 6-2271143-2 | 6-2271110-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 12 | 12 | 12 |
| Shell Size - Insert | M12-12 | M12-12 | M12-12 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - |
| Termination | Solder | Solder | Screw |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | A | A | A |
| Primary Material | Metal | Metal | Plastic |
| Shell Material | Zinc Die Cast | Zinc Die Cast | Polyamide (PA), Nylon |
| Shell Finish | Nickel | Nickel | - |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | Silver | Black, Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - |
| Features | - | - | Backshell |
| Shielding | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 30VAC/DC | 30VAC/DC | 30VAC/DC |
| Cable Opening | - | - | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
