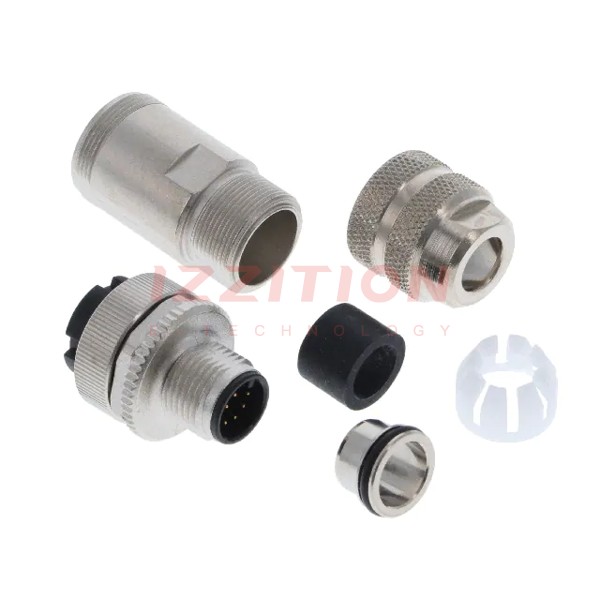

| Part Number | 6-2271111-2 | 6-2271116-2 | 6-2271110-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 12 | 12 | 12 |
| Shell Size - Insert | M12-12 | M12-12 | M12-12 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Screw | Screw | Screw |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | A | A | A |
| Primary Material | Metal | Plastic | Plastic |
| Shell Material | Zinc Die Cast | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | Nickel | - | - |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | Black, Silver | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - |
| Features | Backshell | Backshell, Coupling Nut | Backshell |
| Shielding | Shielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 30V | 30VAC/DC | 30VAC/DC |
| Cable Opening | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
