6-179960-2
  • Share:

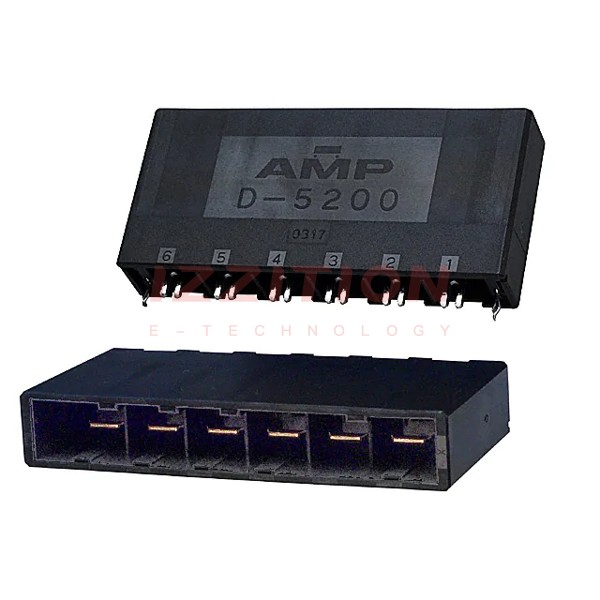

TE Connectivity AMP Connectors 6-179960-2

Manufacturer No:
6-179960-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
6-179960-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 6POS 10.16MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.400" (10.16mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.260" (32.00mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:IP20
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):30A
Voltage Rating:630V
0 Remaining View Similar

In Stock

$5.55
161

Please send RFQ , we will respond immediately.
