6-1775443-3
  • Share:

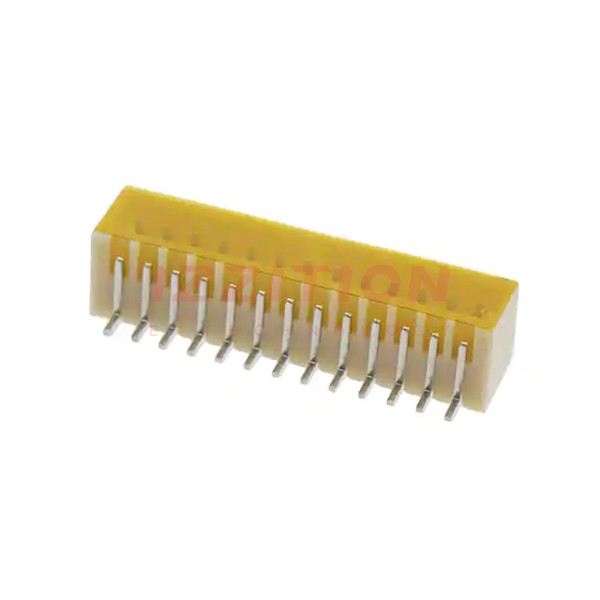

TE Connectivity AMP Connectors 6-1775443-3

Manufacturer No:
6-1775443-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
6-1775443-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 13POS 1.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:13
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:-
Contact Length - Mating:0.106" (2.70mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.197" (5.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Pick and Place
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.12
435

Please send RFQ , we will respond immediately.

Similar Products

Part Number 6-1775443-3 6-1775443-0   6-1775443-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active
Connector Type Header Header Header
Contact Type Male Pin Male Pin Male Pin
Pitch - Mating 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm)
Number of Positions 13 10 12
Number of Rows 1 1 1
Row Spacing - Mating - - -
Number of Positions Loaded All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder
Fastening Type - - -
Contact Length - Mating 0.106" (2.70mm) 0.106" (2.70mm) 0.106" (2.70mm)
Contact Length - Post - - -
Overall Contact Length - - -
Insulation Height 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm)
Contact Shape Square Square Square
Contact Finish - Mating Tin Tin Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm) 100.0µin (2.54µm) 100.0µin (2.54µm)
Contact Finish - Post Tin Tin Tin
Contact Material Brass Brass Brass
Insulation Material Thermoplastic Thermoplastic Thermoplastic
Features Pick and Place Pick and Place Pick and Place
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural
Current Rating (Amps) 3A 3A 3A
Voltage Rating 250VAC 250VAC 250VAC
