6-146506-1
  • Share:

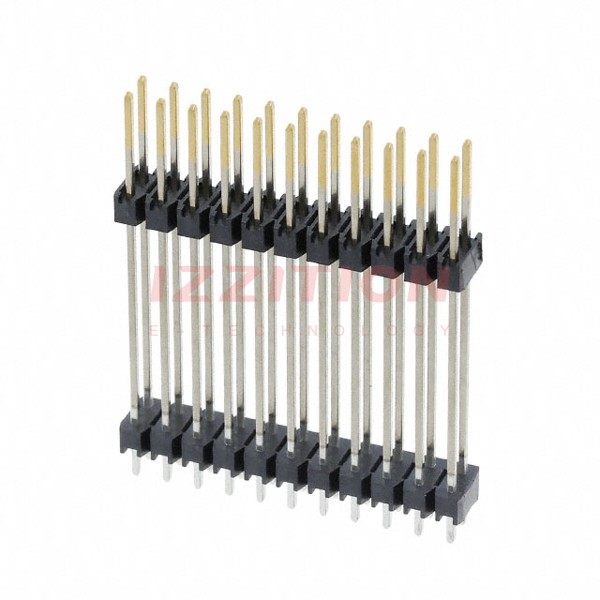

TE Connectivity AMP Connectors 6-146506-1

Manufacturer No:
6-146506-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
6-146506-1 Datasheet
ECAD Model:
-
Description:
CONN HDR 22POS 0.1 STACK T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Positions:22
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:1.330" (33.782mm)
Length - Post (Mating):0.330" (8.382mm)
Length - Stack Height:0.900" (22.860mm)
Length - Tail:0.100" (2.540mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):15.0µin (0.38µm)
Color:Black
0 Remaining View Similar

In Stock

$11.70
10

Please send RFQ , we will respond immediately.
