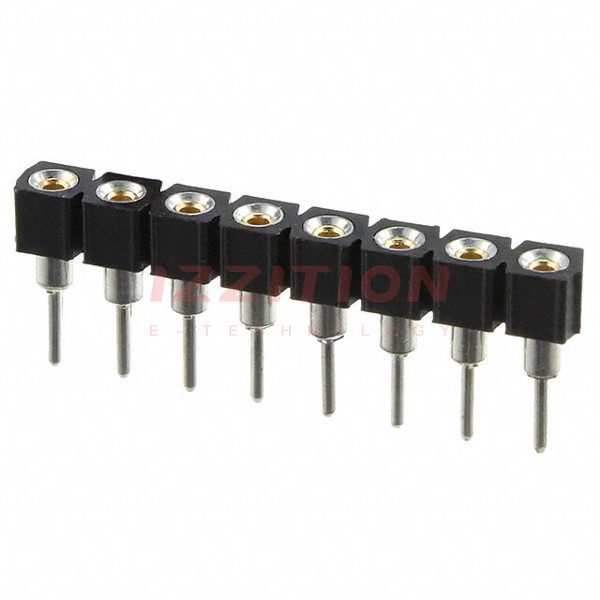

| Part Number | 6-1437535-3 | 6-1437536-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Type | SIP | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 8 (1 x 8) | 32 (2 x 16) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | - |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Gold | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | - |
| Contact Material - Post | Beryllium Copper | Brass |
| Housing Material | Thermoplastic | - |
| Operating Temperature | - | -55°C ~ 125°C |
