6-103817-8
  • Share:

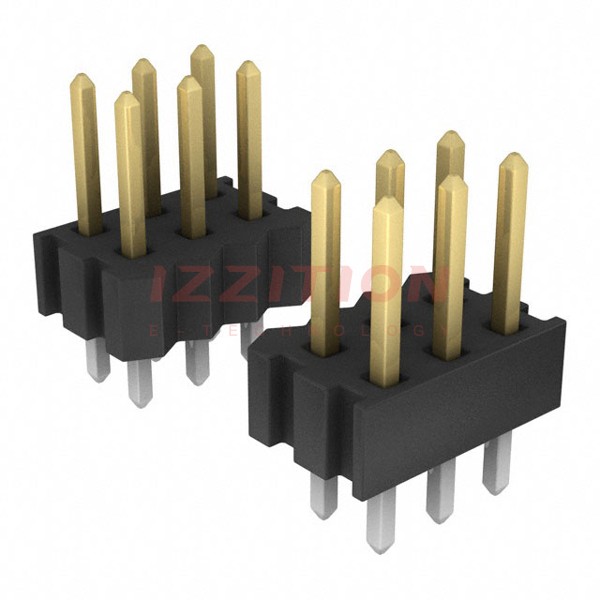

TE Connectivity AMP Connectors 6-103817-8

Manufacturer No:
6-103817-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Box
Datasheet:
6-103817-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 60POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:60
Number of Rows:3
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.470" (11.94mm)
Insulation Height:0.120" (3.05mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

$15.60
61

Please send RFQ , we will respond immediately.
