6-103673-4
  • Share:

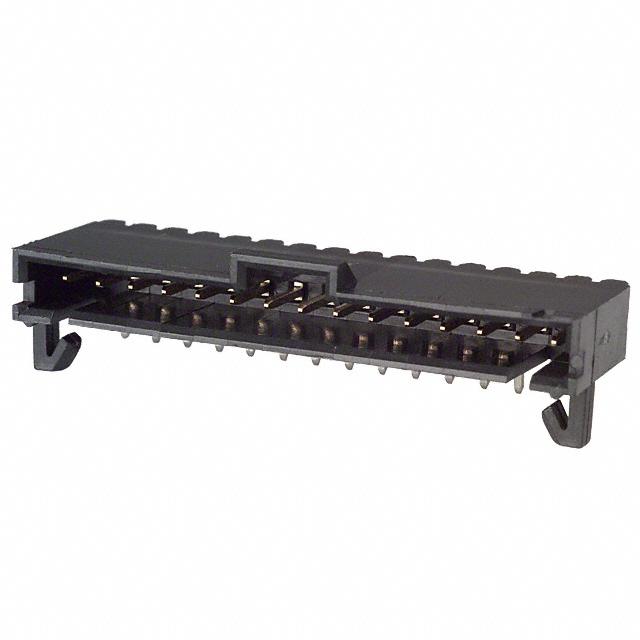

TE Connectivity AMP Connectors 6-103673-4

Manufacturer No:
6-103673-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
6-103673-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 15POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.200" (5.08mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Board Lock, Keying Slot
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

$3.97
223

Please send RFQ , we will respond immediately.

Similar Products

Part Number 6-103673-4 6-103673-9   6-103673-6   6-103673-5   6-103673-0   6-103673-1   6-103673-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 15 20 17 16 11 12 14
Number of Rows 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - -
Number of Positions Loaded All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder Latch Holder
Contact Length - Mating 0.230" (5.84mm) 0.230" (5.84mm) 0.230" (5.84mm) 0.230" (5.84mm) 0.230" (5.84mm) 0.230" (5.84mm) 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm)
Overall Contact Length - - - - - - -
Insulation Height 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm)
Contact Shape Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass Brass
Insulation Material Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic
Features Board Lock, Keying Slot Board Lock, Keying Slot Board Lock, Keying Slot Board Lock, Keying Slot Board Lock, Keying Slot Board Lock, Keying Slot Board Lock, Keying Slot
Operating Temperature -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black
Current Rating (Amps) 3A 3A 3A 3A 3A 3A 3A
Voltage Rating - - - - - - -
