6-102618-1
  • Share:

TE Connectivity AMP Connectors 6-102618-1

Manufacturer No:
6-102618-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
6-102618-1 Datasheet
ECAD Model:
-
Description:

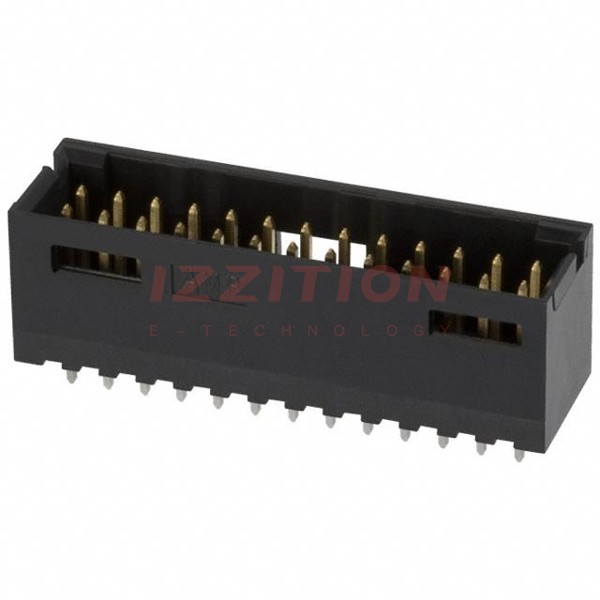

CONN HEADER VERT 26POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.318" (8.08mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:0.533" (13.55mm)
Insulation Height:0.440" (11.18mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
