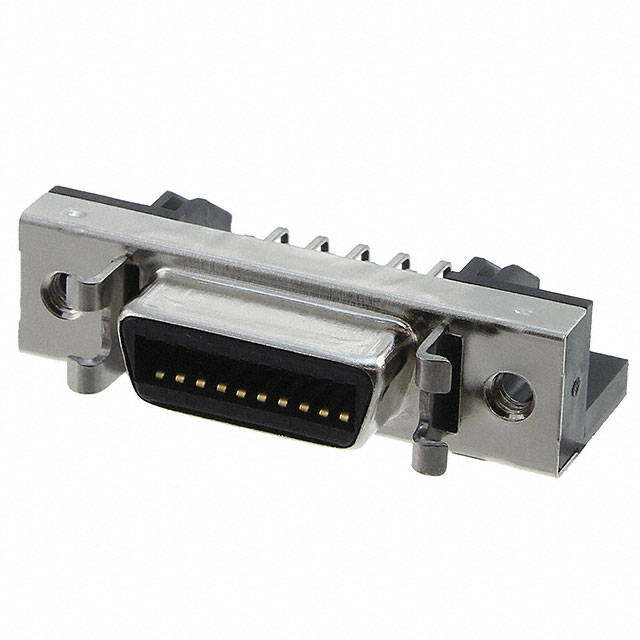

| Part Number | 5917738-2 | 5917738-4 | 5917738-5 | 5917738-7 | 5917738-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Number of Positions | 20 | 26 | 36 | 50 | 14 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | Housing/Shell (M2.6) | Housing/Shell (M2.6) | Housing/Shell (M2.6) | Housing/Shell (M2.6) | Housing/Shell (M2.6) |
| Type | - | - | - | - | - |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 3.94µin (0.10µm) | 3.94µin (0.10µm) | 3.94µin (0.10µm) | 3.94µin (0.10µm) | 3.94µin (0.10µm) |
