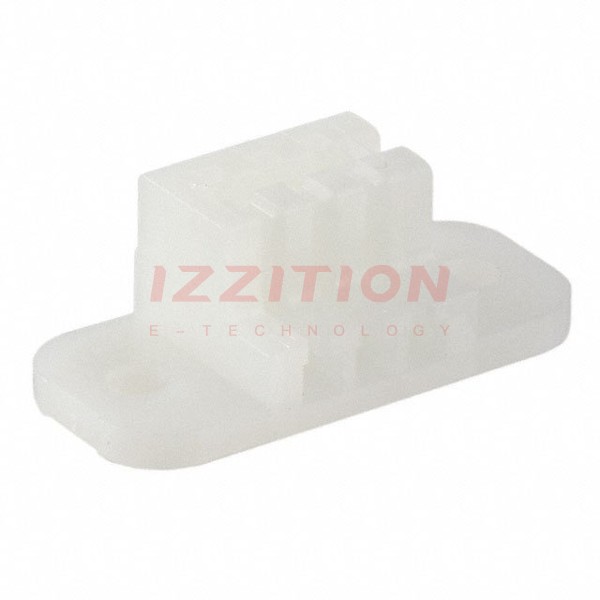

| Part Number | 582380-9 | 582384-9 | 582388-9 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Card Type | Non Specified - Dual Edge | Non Specified - Dual Edge | Non Specified - Dual Edge |
| Number of Positions | 6 | 24 | 44 |
| Card Thickness | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Features | Flange | Flange | Flange |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Color | Natural | Natural | Natural |
| Flange Feature | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia |
| Material - Insulation | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
