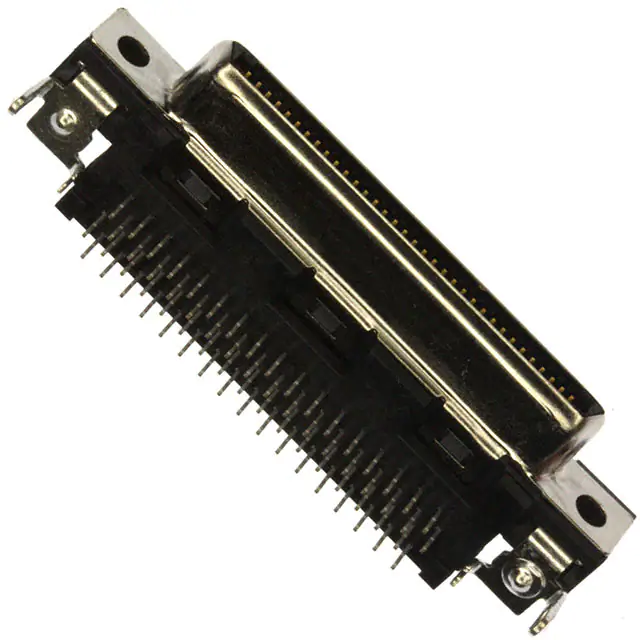

| Part Number | 5796055-1 | 5796055-2 | 5796055-4 | 796055-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle |
| Number of Positions | 68 | 68 | 68 | 68 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Flange Feature | Housing/Shell (M2.6) | Housing/Shell (M2.6) | Housing/Shell (M2.6) | Housing/Shell (M2.6) |
| Type | - | - | - | - |
| Features | Board Guide, Board Lock, Shielded | Board Guide, Board Lock, Shielded | Board Guide, Board Lock, Shielded | Board Lock, Shielded |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
