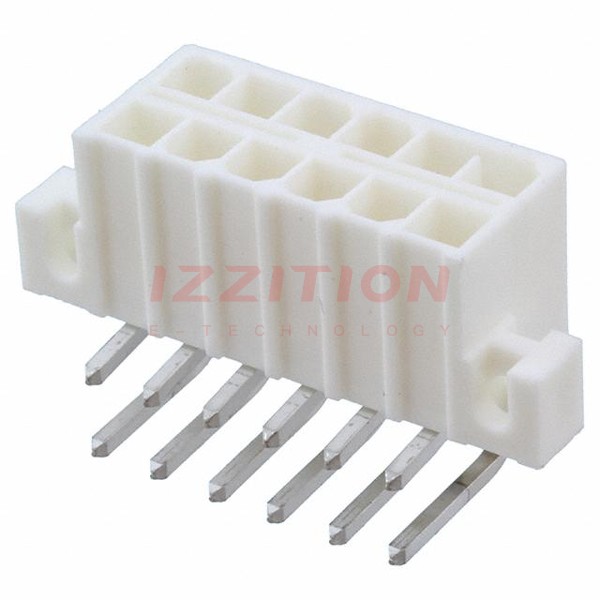

TE Connectivity AMP Connectors 5794176-7

Manufacturer No:
5794176-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5794176-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 12POS 4.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.217" (5.51mm)
Number of Positions Loaded:10
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.205" (5.21mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.461" (11.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

-
72

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5794176-7 5794176-2   5794176-3   5794176-4   5794176-5   5794176-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Active Obsolete Obsolete Active Obsolete
Connector Type Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm)
Number of Positions 12 12 12 12 12 12
Number of Rows 2 2 2 2 2 2
Row Spacing - Mating 0.217" (5.51mm) 0.217" (5.51mm) 0.217" (5.51mm) 0.217" (5.51mm) 0.217" (5.51mm) 0.217" (5.51mm)
Number of Positions Loaded 10 All All 11 11 11
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Length - Mating 0.205" (5.21mm) 0.205" (5.21mm) 0.205" (5.21mm) 0.205" (5.21mm) 0.205" (5.21mm) 0.205" (5.21mm)
Contact Length - Post 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm)
Overall Contact Length - - - - - -
Insulation Height 0.461" (11.70mm) 0.461" (11.70mm) 0.461" (11.70mm) 0.461" (11.70mm) 0.461" (11.70mm) 0.461" (11.70mm)
Contact Shape Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features Mounting Flange Mounting Flange Mounting Flange Mounting Flange Mounting Flange Mounting Flange
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural Natural Natural Natural
Current Rating (Amps) - - - - - -
Voltage Rating 600VAC 600VAC 600VAC 600VAC 600VAC 600VAC
