Please send RFQ , we will respond immediately.

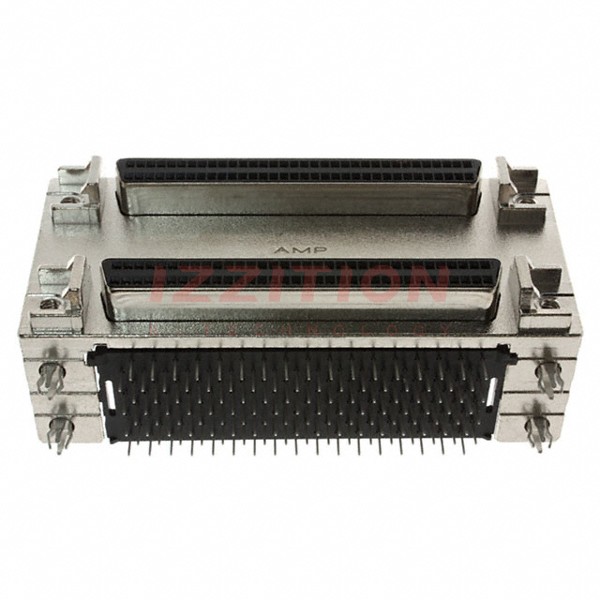

| Part Number | 5787678-1 | 5787679-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Style | D-Type - Stacked | D-Type - Stacked |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 68, 68 | 68, 68 |
| Number of Rows | 2, 2 | 2, 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (2-56); Latchblocks, Rails | Housing/Shell (4-40) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1A | 1A |
| Backset Spacing | 0.146" (3.71mm) | 0.146" (3.71mm) |
| Features | Board Lock | Board Lock |
