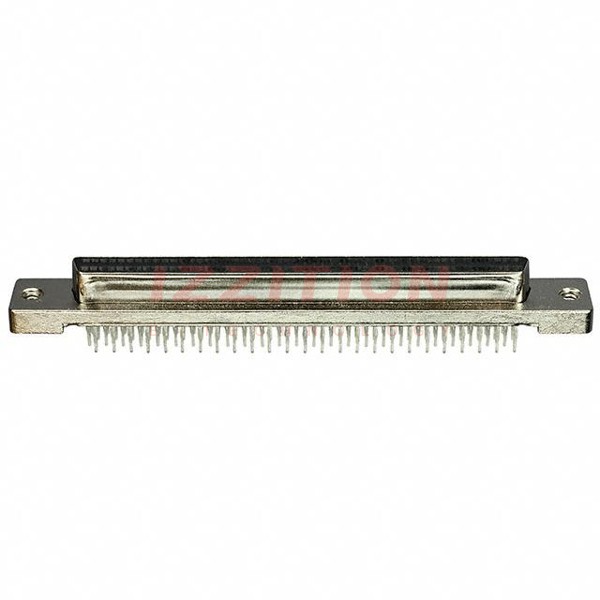

| Part Number | 5786555-9 | 5786554-9 | 5786555-5 | 5786555-7 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | D-Type | D-Type | D-Type | D-Type |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 100 | 100 | 50 | 68 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (2-56); Latchblocks, Rails | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Primary Material | - | - | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1A | 1A | 1A | 1A |
| Backset Spacing | - | - | - | - |
| Features | Shielded | Shielded | Shielded | Shielded |
