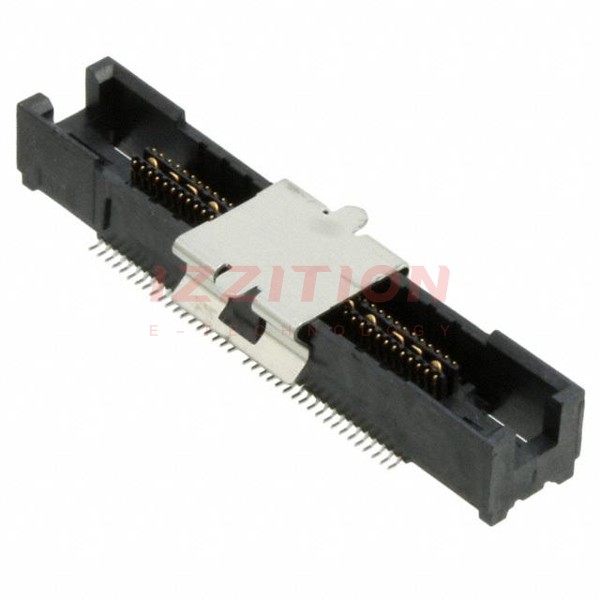

5767096-9 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity AMP Connectors 5767096-9
Manufacturer No:
5767096-9
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
5767096-9 Datasheet
ECAD Model:
-
Description:
CONN RCPT 76POS SMD GOLD
Delivery:
Payment:
Product Attributes
Connector Type:
Receptacle, Center Strip Contacts
Number of Positions:
76
Pitch:
0.025" (0.64mm)
Number of Rows:
2
Mounting Type:
Surface Mount
Features:
Board Guide, Ground Bus (Plane)
Contact Finish:
Gold
Contact Finish Thickness:
30.0µin (0.76µm)
Mated Stacking Heights:
6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board:
0.236" (6.00mm)
0
Remaining
View Similar
In Stock
UnitPrice:
$35.65
