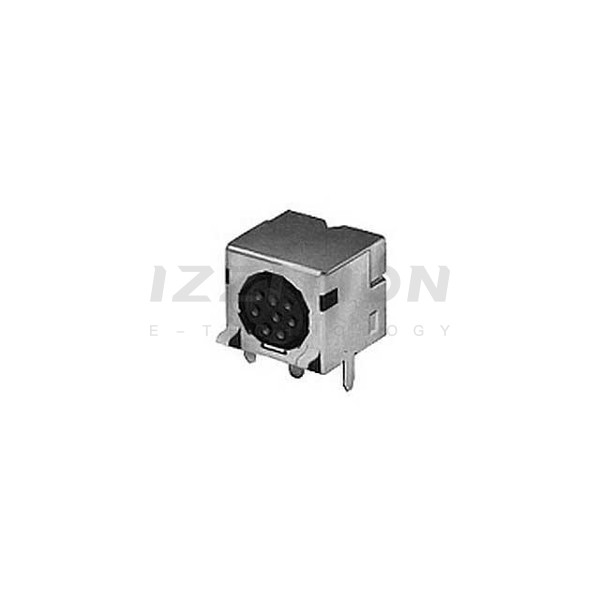

| Part Number | 5750073-1 | 5750071-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 8 | 6 |
| Shell Size - Insert | Mini DIN | Mini DIN |
| Shell Size, MIL | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Mounting Feature | - | - |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Material | Thermoplastic | Polyester |
| Shell Finish | - | - |
| Contact Finish - Mating | Gold | Gold |
| Color | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Board Guide | - |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | 1A | 1A |
| Voltage Rating | 30VDC | 30VDC |
| Cable Opening | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
