Please send RFQ , we will respond immediately.

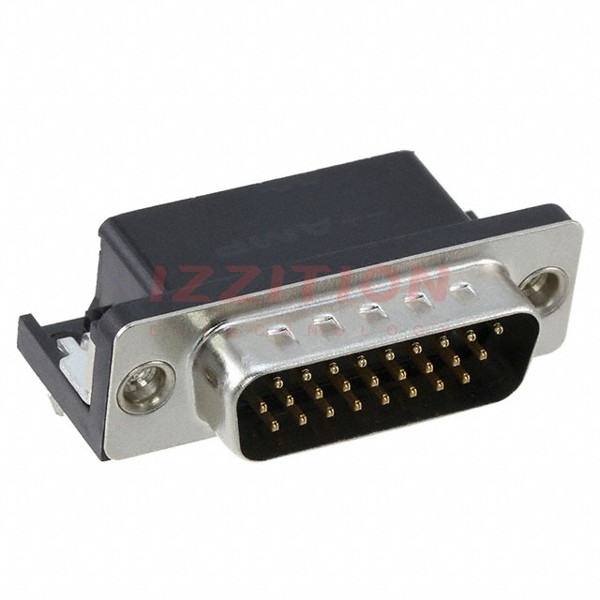

| Part Number | 5749769-3 | 5749769-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Style | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 26 | 26 |
| Number of Rows | 3 | 3 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) High Density | 2 (DA, A) High Density |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | Flash | 30.0µin (0.76µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 2A | 2A |
| Backset Spacing | 0.350" (8.89mm) | 0.350" (8.89mm) |
| Features | Board Lock, Grounding Indents | Board Lock, Grounding Indents |
