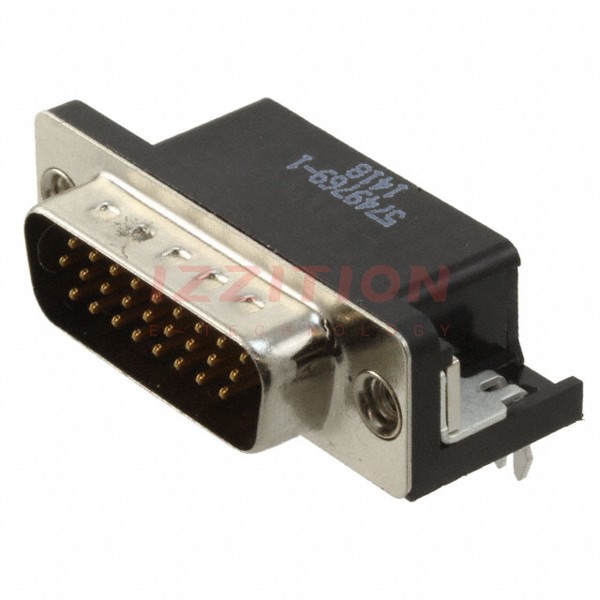

| Part Number | 5749769-1 | 5749769-3 | 5749069-1 | 5749767-1 | 5749768-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Connector Style | D-Sub, High Density | D-Sub, High Density | D-Type | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 26 | 26 | 20 | 15 | 15 |
| Number of Rows | 3 | 3 | 2 | 3 | 3 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) High Density | 2 (DA, A) High Density | 0.050 Pitch x 0.100 Row to Row | 1 (DE, E) High Density | 1 (DE, E) High Density |
| Contact Type | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (2-56); Latchblocks, Rails | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Primary Material | - | - | - | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | Flash | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 2A | 2A | 1A | 2A | 2A |
| Backset Spacing | 0.350" (8.89mm) | 0.350" (8.89mm) | - | 0.350" (8.89mm) | 0.350" (8.89mm) |
| Features | Board Lock, Grounding Indents | Board Lock, Grounding Indents | Shielded | Grounding Indents | Board Lock, Grounding Indents |
