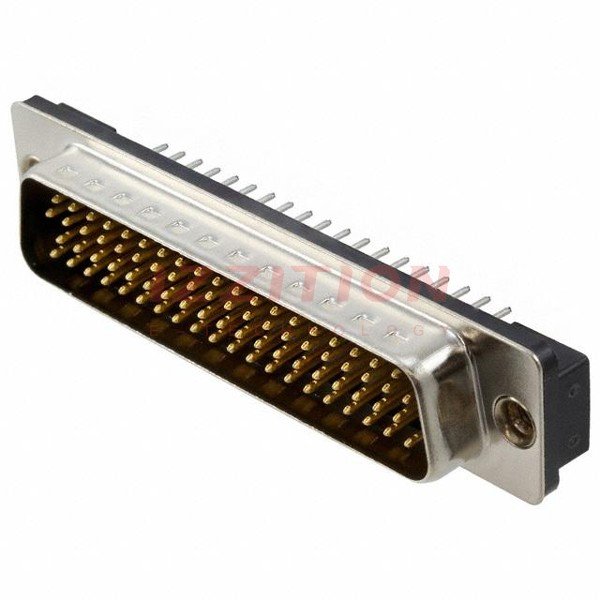

| Part Number | 5749019-1 | 5749069-1 | 5749014-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Connector Style | D-Sub, High Density | D-Type | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 78 | 20 | 9 |
| Number of Rows | 4 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Shell Size, Connector Layout | 5 (DD, D) High Density | 0.050 Pitch x 0.100 Row to Row | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (2-56); Latchblocks, Rails | Board Side (4-40) |
| Termination | Solder | Solder | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | - | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1.5A | 1A | 6A |
| Backset Spacing | - | - | - |
| Features | Grounding Indents | Shielded | Grounding Indents |
